Modular Conveyor Systems
Versatile, customizable conveyor solutions for a variety of light-duty applications.
Rapid-Veyor
Our portable Modular Conveyor systems are engineered to improve efficiency while increasing labor savings.
Unlike many other conventional conveyors that operate at fixed speeds and in one direction, our systems feature multi-directional capabilities and variable speed control. The conveyor beds are expertly crafted from lightweight and durable aluminum, offering portability and resilience. Plus, they’re made in the USA and are backed by a two-year warranty.
How to Customize Your Conveyor System
Step 1: Measure the Distance
Always give yourself a few extra feet of flexibility. The system is modular and portable, so you can always remove sections you don’t need.
Step 2: Decide What Width You Need
We offer 12” and 18” wide PMCs that seamlessly connect with our collection of parts and accessories for optimal versatility.
Step 3: Select Section(s)
Your modular conveyor system will require at least one Drive Conveyor Section. The drive sections come in two lengths (12.5’ or 20’) and have a permanently attached motor, making it ready to go at all times. The drive sections can also transfer power to Non-Motor Sections. Each drive section can power up to 100′ of total system length in a straight line.
Step 4: Select Accessories
- For additional flexibility, you can use Drop-in-Drives to power Non-Motor sections at a raised level or directly on the ground. Learn more by checking out: What type of drive should I purchase?
- For the raised system, plan on 1x Tripod Stand per conveyor section. If using only Non Motor sections, you’ll need tripods for the number of sections +1.
- Outside and Inside Corner Kits for any turns
- Photo Eye Stop Kit for convenience or safety
- Storage Cart for up to 100’ of conveyor

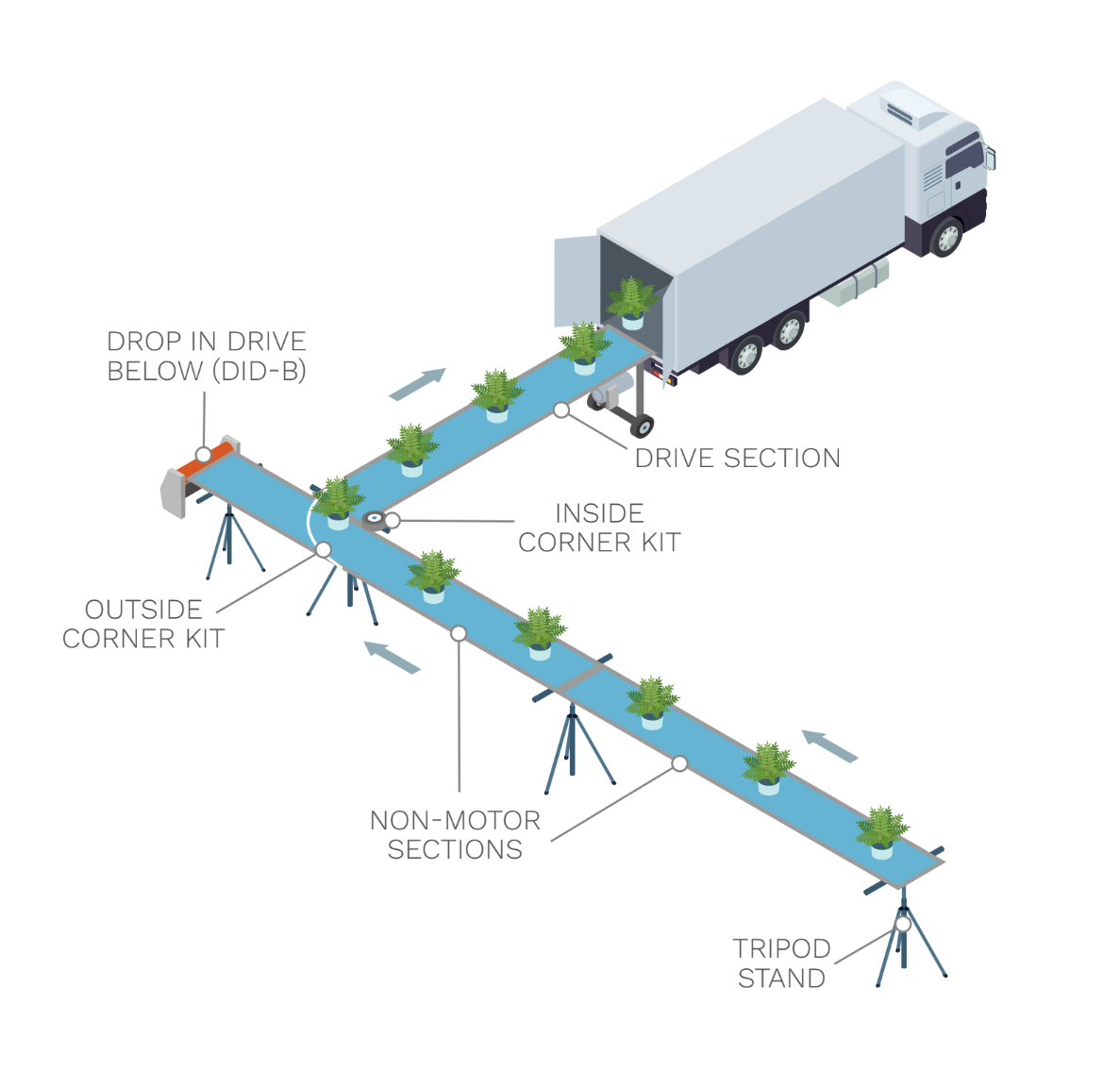

Example: Drop-In Drive B with Corner Kit (below)

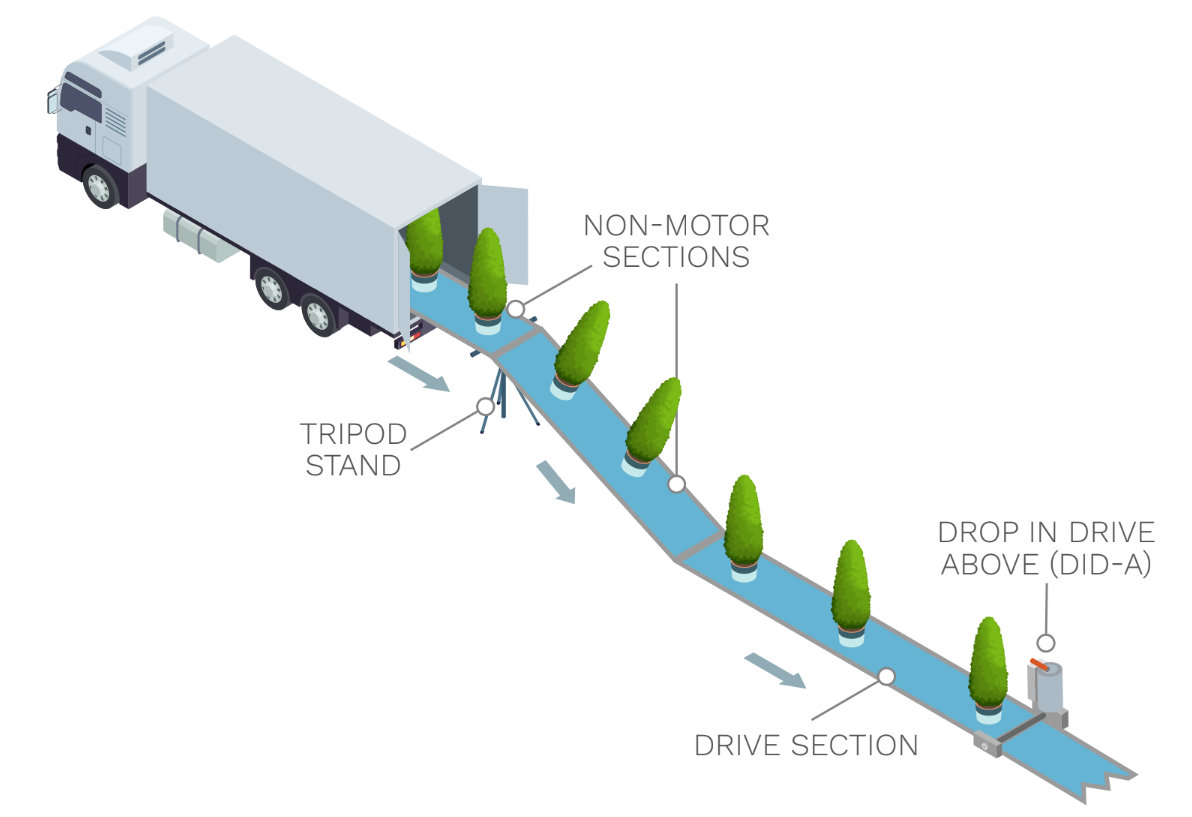

Example: Drop-In Drive A (below)
Product Gallery
DSC_0350
PMC-91
PMC-80
PMC-83

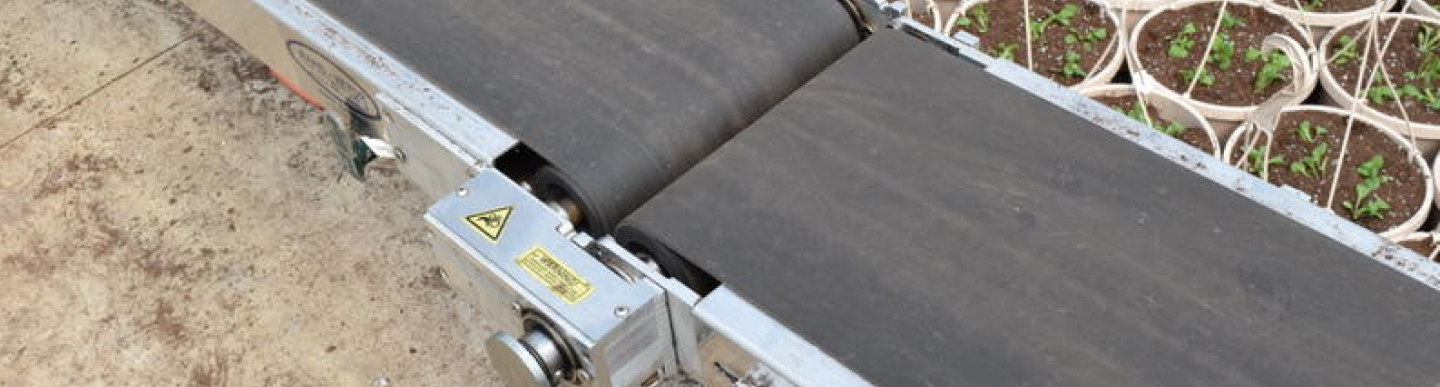

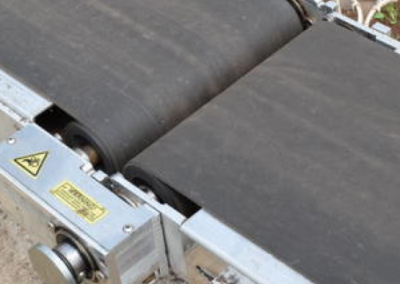

PMC-58
PMC-40
PMC-22
PMC-5
PMC-4
PMC-88
PMC-27
DID-A-12
DID-A (5)
OLYMPUS DIGITAL CAMERA
OLYMPUS DIGITAL CAMERA
PMC-3
Get a Quote on Your Unique System
Product Descriptions
Non-Motor Sections – can be used in conjunction with a Drive Section or Drop-In Drive.
Drop In Drive Above (DID-A) – positioned above the conveyor bed, which helps run the belt on the ground or on benches. This is a self contained motor + controller that must be attached to any Non Motor section of conveyor. Conveyed items must not be wider than the conveyor bed itself (they can’t overhang or they will interfere with the DID-A).
Drop In Drive Below (DID-B) – hangs below the conveyor bed and is perfect for products that are wider than the bed because it keeps the top free of obstruction. This is a self contained motor + controller that must be attached to any Non Motor section of conveyor. Since it hangs below the conveyor section it will be necessary to elevate the conveyor from the ground using a tripod stand or other method.
Tripod Stand – used to rest the conveyor on and can be adjusted to different heights.
Inside Corner Kit – a wheel and mounting hardware to handle “inside” cornering duties.
Outside Corner Kit – is a guide and mounting hardware to handle “outside” product cornering duties.
Photo Eye Stop Kit – attaches to the controller of the drive section or the drop-in drive to cause products on the belt to stop the motor when the product breaks the photo beam, then resume movement when the product is moved and the beam is restored.
Storage Cart – stores and transports up to 100′ of conveyor.
Frequently Asked Questions
How Will a Conveyor Boost Greenhouse Productivity & Profitability?
A portable, modular conveyor system from Rapid-Veyor can boost your greenhouse’s productivity and profitability tenfold. Its lightweight, portable design allows you to move it easily throughout your facility. Its modular engineering allows you to configure and reconfigure the system as needed, ensuring the most convenient and comfortable layout for your employees.
As the most versatile conveyor system on the market, the Rapid-Veyor will move products safely and quickly, ensure maximum comfort for your employees, reduce labor costs, and provide reliable, reconfigurable operation for years to come.
What Makes Rapid-Veyor’s Conveyor Belts Different from Traditional Conveyor Belts?
The Rapid-Veyor conveyor system is different from traditional conveyor belts. It’s designed for light-duty applications and can be configured to meet your greenhouse’s unique requirements.
The Rapid-Veyor is a portable, modular conveyor system, meaning that it’s built from 12.5’ or 20’ lengths of conveyor that are connected via a seamless Drop N’ Lock system. These conveyor sections can be easily moved and reconfigured as you wish. They’re powered by drop-in drives that can operate standing up or on the ground, and in both forward and reverse directions.
How Much Weight Can a Rapid-Veyor Conveyor Hold?
The Rapid-Veyor conveyor system was built for light-duty applications. It’s rated for 800 lbs. of live load over 100’ of conveyor. It’s a great fit for transporting plants, bags of soil, and more grow room materials and equipment.
What Size Do Rapid-Veyor Modular Conveyor Sections Come In?
Our modular conveyor sections come in 12.5’ or 20’ lengths. The conveyor sections all have a 10” wide belt. These sections can be combined to create a chain as long as you’d like. Keep in mind that one drop-in drive can power a length of modular conveyor sections up to 100’.
